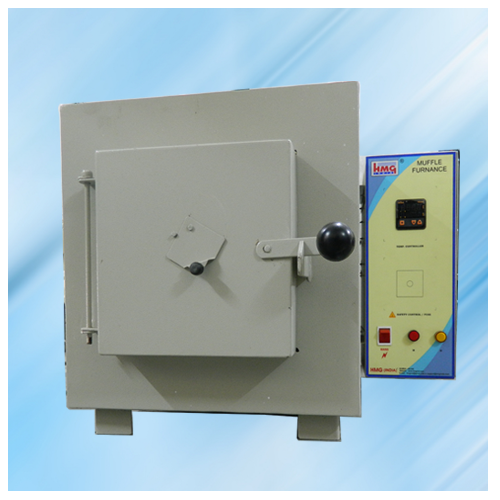

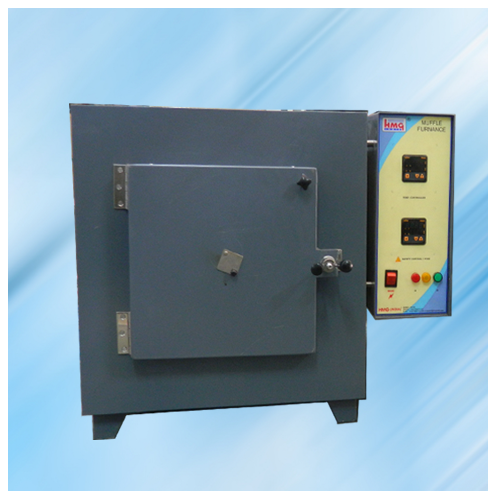

Muffle Furnace Manufacturer, Exporter, Dealer, Supplier

Look into HMG India's Muffle Furnace to get exactly the kind of accurate heat treatment needed to transform the physical properties of samples using extreme temperatures. The kind of temperatures that can be set in it are 100°C, 1400°C, 1600°C and 1800°C. It is an equipment that is most suitable for carrying out complex scientific experiments in which such heat transformations play an essential role in finding conclusions.

Where It Is Required?

Key areas of application for our MUFFLE FURNACE include small industrial production, research laboratories, steel industries and paint manufacturing factories, rice laboratories. Some examples for which this equipment is used are ash determination, annealing, lime calcination, leaves carbonization, elastic tensile strength test, coal sampling, chemical analysis etc.It is used in activities such as soldering, brazing, ceramics production, creating enamel coating and fusing glass.

Muffle Furnaces Features

The vital quality of this furnace is that it has the capacity to heat the chamber using electricity, through which the material placed inside will get warm but there is no flame involved in the process.

  •  Is a high performance muffle furnace that comes with a electrically operated furnace.
  •  Inside the cabinet there are high quality resistant wires that are insulated with cerwool
  •  Outer cabinet is made from metal and has a resistant paint so that it can be used extensively without heat dissipation
  •  Inclusive of thermal fuse which goes off in the event of overriding temperatures
  •  Our models are available in temperatures 1100°C, 1400°C, 1600°C & 1800°C
  •  Temperature inside is maintained in utmost accuracy an uniformity
  •  Sturdy body ensures that the structure will work extensively even under difficult conditions
  •  Incline of various safety devices which ensure accurate functioning
  •  Power supply needed is 230 V, 50 Hz, AC Mains
  •  Exterior is rugged as it is made from thick steel which enables you to use it extensively without quick wear and tear
  •  It can be programmed to keep the heat and cooling temperatures at a particular degree
  •  Has the ability to keep the temperature uniform across the chamber and at the same level
  •  Has very good insulation which is provided by Cerwool
  •  Has a compact design, hence can be placed in a small area
  •  Comes with energy efficiency feature so it will not draw much electricity for functioning
  •  Exterior is strong and corrosion ftee and its lightweight construction enables it to be easily moved as and when required

    • Muffle Furnaces Specification

  •  Temperature Range: 930°C/ 1150°C working (1200°C)
  •  Temp. Controls: Micro PID at extra as selected.
  •  Heating Element: Kanthal – A1 (15, S.W.G.)
  •  Temp. Sensor: Chromel/ Alumel
  •  Power: 230V, 50HZ, AC Mains
  •  Muffle Furnace Rectangular horizontal, powder coated
  •  Complete with indicator lamps
  •  Installed with Digital Temperature Controller

    • STANDARD MODEL &cGMP Model

    Temp. Range & Control
    Size- D x W x H Rating Watt
    Inch cm
    9 x 4 x 4” 23X 10 X 10 1600
    10 x 5 x 5” 25 x 13 x 13 2000
    12 x 6 x6” 30 x 15 x 15 3000
    18 x 9 x 9” 45 x 23 x 23 6000
    3 Phase
    18 x 9 x 9” 45x23x23 6000

    Optional Extras/ Accessories

  •  Safety fuse/ safety control offered as optional at extra for safety against over shoot of temp.
  •  Blind Temp. Controller with suitable sensor
  •  Electronic Temp. Controller cum indicator
  •  Solid State Fuse
  •  Digital Timer – 999 Minutes
  •  On site Validation
