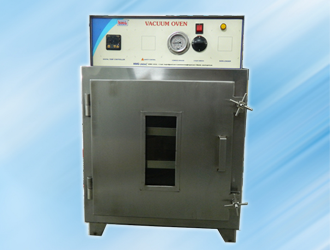

Vacuum Oven Manufacturer, Exporter, Dealer, Supplier

HMG India offers modern and well-design vacuum oven through which you can dry any fruit, vegetable or herb in the shortest possible time. It is the most suitable equipment for delicate drying activities and shows the best results for such needs. You will find it to be precise in drying out smaller items and very accurate in removing flammable solvants by its quick drying process.

Vacuum Ovens Features And Qualities

By drying your products with our high quality and robust vacuum oven they can be sent to the markets faster. The resultant product is of a higher quality than it was prior to drying and after carrying out the drying process using this particular equipment, it become less susceptible to mould and mildew. One of its unique abilities is its capacity to strip solvents like CO2 and Butane of their oil content thus making them more marketable. Its features include:

  •  Comes with a stainless steel chamber which makes the equipment strong and durable
  •  Is capable of providing accurate vacuum and temperature performance time and again
  •  Shows accurate results time and again and will not show any leakage problems
  •  As the exterior is MS powder coated, it will not get any scratches or other problems
  •  The device comes with a toughened gas which makes way or easy viewing and is Inclusive of a cock and vacuum gauge
  •  Include an exhaust port through which moisture is removed from the plants being dried
  •  Comes with a digital controller through which temperature can be easily set and also controlled
  •   Temperate range that an be achieved is Ambient + 50C to 1300C / 2500C and the vacuum range is from 0 to 760 mm
  •  It comes with a long lasting gasket that is made from molded silicon
  •  Interiors are made from stainless steel for corrosion-free quality and come with sliding shelves that electrolytic polished which makes way for long-lasting nature and easy cleaning

    • HMG India's super sophisticated vacuum ovens is capable of drying at very quick speeds and enables you to do the drying process ta temperature that is much lower than is otherwise possible.

    Though regular ovens have been used for drying food items, still they cannot produce the kind of results that is experienced with our high percussion vacuum oven. It has the capacity to minimize oxidation by creating a low pressure environment which results in better quality for drying than is otherwise possible.


    Selection Guide

    Rectangular Vacuum oven

    Model Cap in Ltr. Size (WxHxD) cm
    HV27S 27 30 x 30 x 30 cm {12 x 12 x 12”}
    HV36S 36 30 x 30 x 40 cm {12 x 12 x 16”}
    HV40S 40 30 x 30 x 45 cm {12 x 12 x 18”}
    HV80S 80 30 x 30 x 50 cm {14 x 14 x 20”}
    HV90S 90 30 x 30 x 45 cm {18 x 18 x 18”}
    HV120S 120 30 x 30 x 60 cm {18 x 18 x 24”}
    HV190S 190 30 x 30 x 75 cm {20 x 20 x 30”}
    45 x 60 x 60 cm {18 x 24 x 24”}

    Optional Data logging for Master controller –– Printer
    Data Logging through 4 channel sensor (Off line recording- 3000 records) with sensor
    Data logging for Master/4 channel sensor (off line recording-3000 records) P.O.R.


    Vacuum Oven – Round

    Cap Inner Size
    MODEL Ltrs (Ø Dia X Depth)
    HV 9 R 12.5 22.5 x 30 cm {9” Ø x 12”}
    HV12 R 27 30 x 38 cm {12” Ø x 15”}
    HV15 R 50 38 x 45 cm {15” Ø x 18”}
