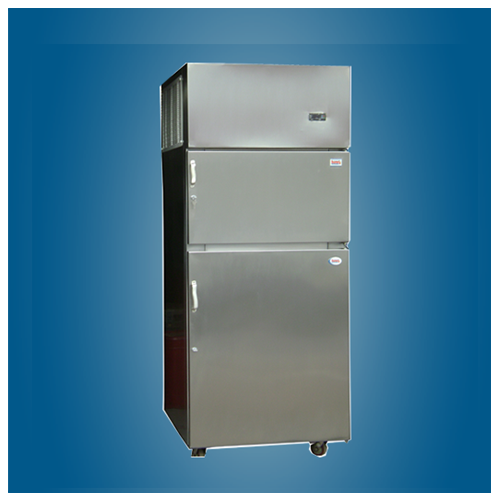

Stability Test Chamber Alias (Humidity Chamber) / Environmental Test Chamber, Manufacturer, Exporter

Stability Test Chamber, are special by itself equipment which are enclosures that are used for testing and detecting effects of pre-specified circumstances on Drug, Food, Health Products, Vaccines, Medicines, API, Herbal, Chemical, Cement, Electrical components, Electronic components, biological elements, & other industrial elements.
All our valuable customers can generate and stimulate globally possible environmental conditions in HMG Stability Chamber which are manufactured with easy going operation and latest technology to comply with all necessary documentation laid down by US FDA & ICH.
Equipment Developed as a result of intensive R & D and confirming to International Standards, suitable for most of environmental conditions.

Applications

  •  Conditioning of samples.
  •  Accelerated shelf life studies.
  •  Stability testing for Drugs & Pharma industries.
  •  Climate conditioning.
  •  Defense and Aerospace industries.
  •  Testing electronic/ Electrical components as per IS, IES, JSS, & Mil standards.

    • Construction

  •  Double walled, as above, gap filled with PUF / Glass wool insulation. Inner full length viewing glass/plexi door, outer metallic door provided. Leak proof positive locking arrangement for door. Chamber illuminated with bulb.

    • Material Construction

    MODEL MATERIAL OF CONSTRUCTION ORDER CODE
    STD Inner SS 304 & outer Prim GI Powder coat finish HETC – STD
    FULL S.S INNER SS-304 & OUTER SS-304 MATT FINISH HECT – SS
    cGMP INNER SS-316 & OUTER SS-304 MATT FINISH, UNIT RESTED ON SS PIPE FRAME STRUCTURE AND FITTED WITH SS CASTOR WHEEL HETC – G

    Control System

  •  1. Intelligent PLC System, HMI display of temp/ humidity
  •  2. Mico Controller based PID controller cum indicator with provision to set Temp. and % RH directly.

    • TEMPERATURE RANGE 20°C to 60°C Accuracy ± 0.2°C or better
    Uniformity ± 2°C or better
    Lower Temp. Range 5˚C ~ 60˚C 5 %
    RH RANGE 40 to 80 % Rh Accuracy ± 3 % or better
    Uniformity ± 5 % or better
    Note Customized Model Designed for Higher Humidity up to 95 % RH

    Safety Features

  •  Dedicated Safety Thermostat for High/Low temperature Cut Off.
  •  Compressor, Air heater, Wet Heater, & Chamber Motor. Safety HRC Fuses.
  •  Safety to devices in case of SSR Failure through dedicated contactor.
  •  Compressor Time Delay , Electrical Overload cut off relay for safety of compressor;
  •  Low Water Cut Off through SS -Low Level Switch.
  •  Dedicated Safety Digital Controller for High /low Temperature Cut Off

    • Material Construction

    Cap Cft/Ltr Dimension (WXDXH) in CM No Of Tray W X D 3.5 cm H Servo Stabilizer & UPS Power Rating
    HETC Internal External Size -CM KVA KW
    3 / 90 40 X 40 X 57 55 X 88 X 135 2 32 x38 3 1.2
    6 /170 50 X 50 X 70 65 X 100 X 148 2 42 x 48 3 1.2
    8/200 60 X 60 X 60 65 X 100 X 158 2 52 x 58 3 1.2
    10 /285 57 X 57 X 88 72 X 107 X 174 3 49 x 55 4 1.6
    12 / 340 60 X 60 X 95 75 X 110 X 181 3 52 x 58 4 1.6
    14/400 65 x60 x 100 80 x 110 x 186 3 57 x 58 5 1.8
    16 / 450 70 X 70 X 90 85 X 120 X 176 3 62 x 68 5 2.0
    21 / 600 80 X 75 X 100 95 X 125 X 186 3 72 x 73 5/7** 2.0
    28 / 800 80 X 80 X 125 95 X 130 X 200 3 72 x 78 7/7.5** 3.5
    36/1000 90 x 90 x 125 105 X 140 X 200 5 82 x 85 7/7.5** 3.5
    54/1500* 135 x 90 x 125 150 x 140 x 200 5 x 2 55 x 85 10 5.0
    72/2000* 150 x 100 x 135 165 x 150 x 210 7 x 2 62 x 95 10 5.0
    87/2500* 165 x100 x 150 180 x 150 x 200 H 225 with built in. 8 x 2 70 x 95 10 7.0
    107/3000* 165 x 100 x 185 180 x 150 x 235 H 235 with built in 10 x 2 70 x 95 10 7.0

    Documents

  •  1. Calibration Certificate for Controller and sensor with traceability.
  •  2. DQ, IQ, OQ & PQ protocol provided with the equipment

    • Optional

  •  1. Data Logger: 4 point temp. Data logger with sensors placed at specific points in chamber with printer interface and memory
  •  2. Standby Humidity Control Chamber System
  •  3. Standby Refrigeration system
  •  4. HMI: 5.7" touch screen grey in lieu of 3.7"
  •  5. Servo controlled voltage stabilizer
  •  6. PLC-based system: PLC with HMI 3.7” touch screen grey monitor with 21 CFR Part 11 features (OSLOG) software.
